Creality CR-Scan Raptor 3D Scanner

  • Em Promoção
  • €1.459,00
  • Preço normal €1.599,00






Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
>>Blue Light(Blue 7-line laser) Mode:
Accuracy: Up to 0.02mm @ 100mm [1]
3D Resolution: 0.02-2mm
Scanning Speed: Up to 60fps
Min. scanvolume: 5mm x 5mm x 5mm
Single Capture Range: 270mmx170mm@300mm
Working distance: 150mm-400mm
Color Mapping: Yes
Alignment mode: Marker
>>NIR(infrared binocular structured light) Mode:
Accuracy:Up to 0.1mm
3D Resolution:0.1-2mm
Scanning Speed:Up to 20fps
Single Capture Range:930mmx580mm@1000mm
Working distance: 170mm-1000mm
Color Mapping: Yes
Alignment mode: Marker / geometry / texture
General Parameters:
3D imaging camera resolution: 1920x1200

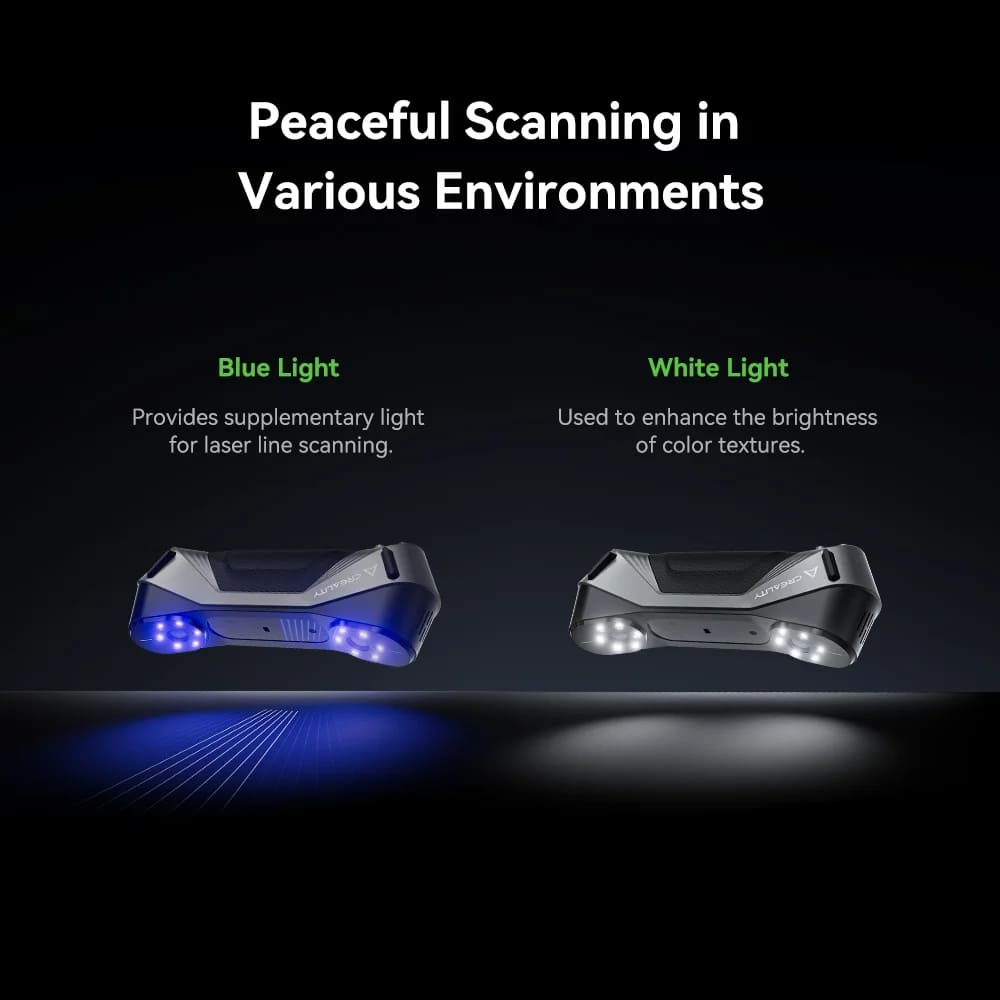

Color Supplemental Light: 12 white LEDs
Marker Recognition Enhancement: 12 infrared LEDs
Laser Safety: Class I (eye safe)
Button: Mechanical
IMU: Yes
Output format: OBJ/STL/PLY
Input Power: 12V 2A
Data interface: TypeC/USB3.0
Device Dimensions: 215mmx50mmx74mm
Device Weight: 372g
Calibration board: High-precision glass calibration board
Wireless Scanning: Supported in conjunction with future wireless scanning accessories
System Support:Windows/macOS
Operating temperature:-10°C to 40°C
Operating humidity: 0-90%RH
Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.

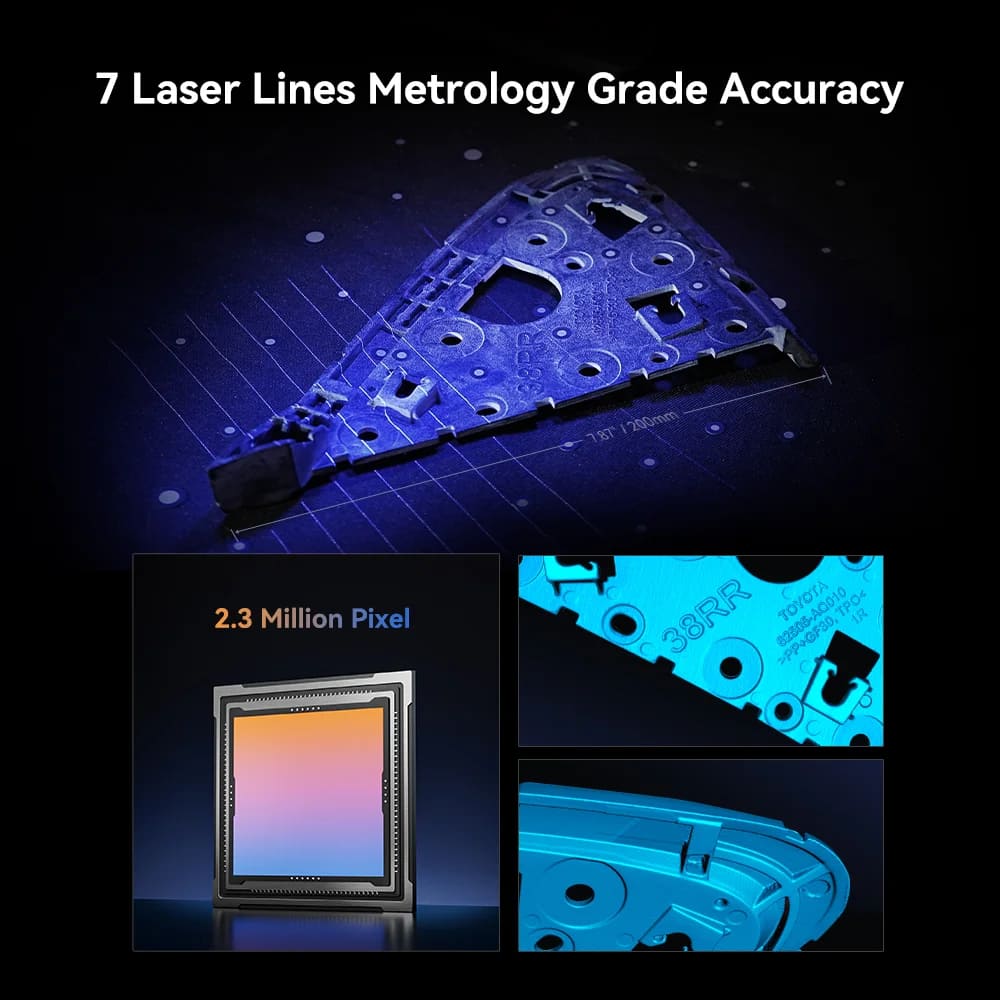

 7 Blue Parallel Laser Lines
 Metrology Grade Accuracy, up to 0.02mm
 Scanning Speed up to 60fps
 Objects between 5-2000mm

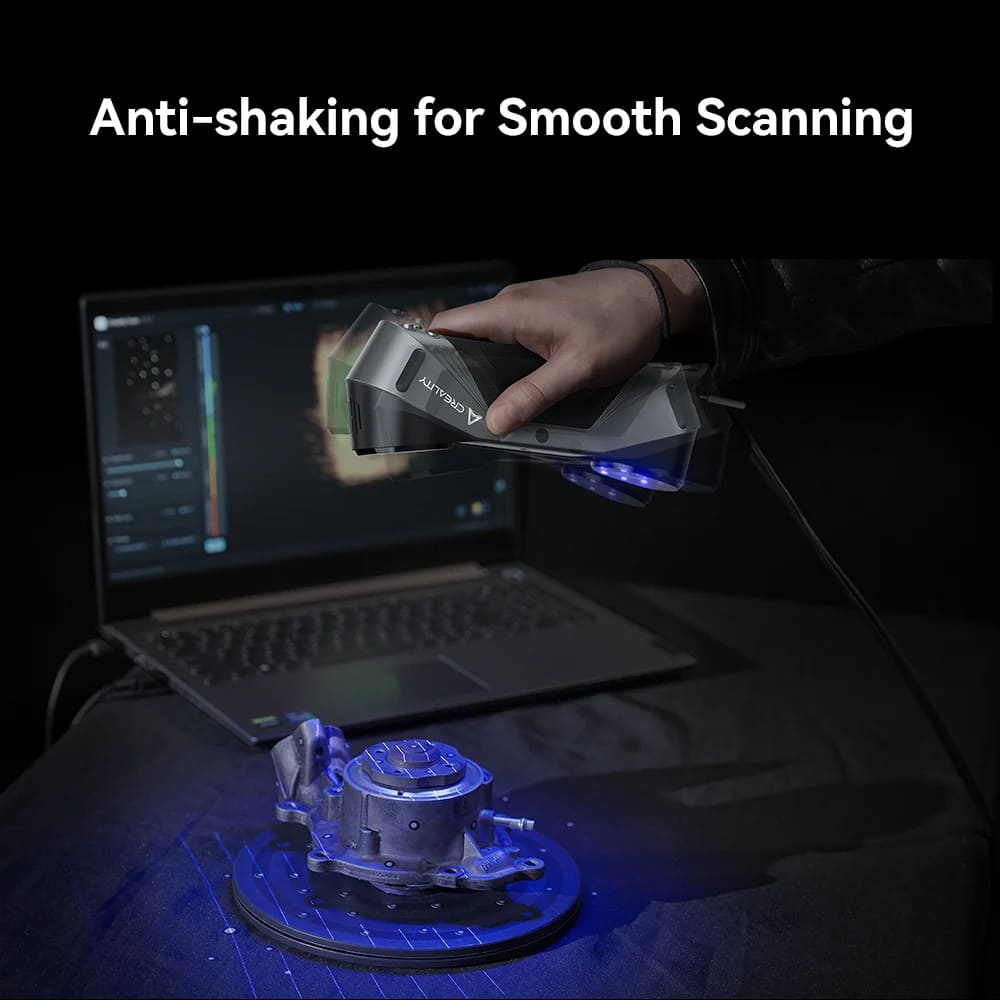

 Anti-shaking for Smooth Scanning
 Scan Black/Metal Objects Without Sprays
 24-Bit Full-Color Scanning
 Light and Compact(215mmx50mmx74mm), only weight 372g
